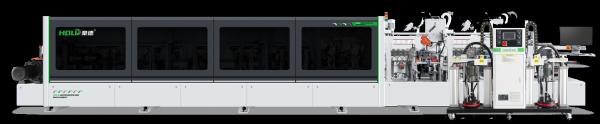

Narrow Edge Banding Machine: HD876J
Minimum board size: 300×40mm (four-side edge banding with corner rounding), 120×40mm (long-side edge banding).
Specially designed pre-milling mechanism for narrow end heads of workpieces, capable of milling narrow board end heads of ≥40mm.
The frame adopts a heavy-duty structure, processed by CNC to ensure the flatness of the table.
The distance between two sets of guide rail columns is densified, ensuring smoother board transportation and better edge scraping effect.
Independent motor control for glue application and edge pressing to avoid the case of "less glue at the beginning and more glue at the end" of boards.
| Model |
HD876J
|
Model |
HD876J
|
| CNC Lifting |
√ |
Edge banding thickness |
0.4-3mm
|
| Total power |
29.5kw |
Panel thickness |
9-60mm
|
| Dimensions |
10450x1000x1800mm
|
Min. panel size |
300×40mm (four-sided edge banding, with long side corner rounding), no corner rounding: 120*40mm
|
| Feeding speed |
14m-21m-24m/min
|
Working pressure |
0.6Mpa |
Heavy-Duty Steel Pressure Beam
Automatic Side Pressure Device for Narrow Panels
PUR+EVA dual gluing system
Five-Roller Pressing
Two rails three motors end cutting
Narrow Edge Trimming + Fine Trimming
Four-tool High-Speed corner rounding
Two Sets of Edge Scraping
Off-cut + Glue Scraper + Cleaning Spray Device
About our company
One-stop solution for
interior furniture equipment and wooden door equipment
HOLD Machinery was founded in 2004, focusing on the development of a full range of furniture machinery equipment and wooden door machinery and equipment, providing furniture and wooden door enterprises with solutions for whole factory planning and automatical production lines, providing customers with excellent quality, efficient and stable products, and high-quality service.
HOLD Machinery has served the majority of furniture and wooden door enterprises in more than 40 countries and regions around the world and has won wide admiration from customers.
FAQ:
1. Do you have the machine in stock?
Sorry, we don't have the machine in stock, edge banding machine has many options such as voltage, speed, function, and so on, So it's hard to prepared samples.
2. How long is your delivery time?
For our standard model, the delivery time is around 1.5~2 months. For the customized model, the delivery time is around 2~3 months. It depends on the client's project and quantity.
3. Do you have a factory?
Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
